Sandvik Coromant

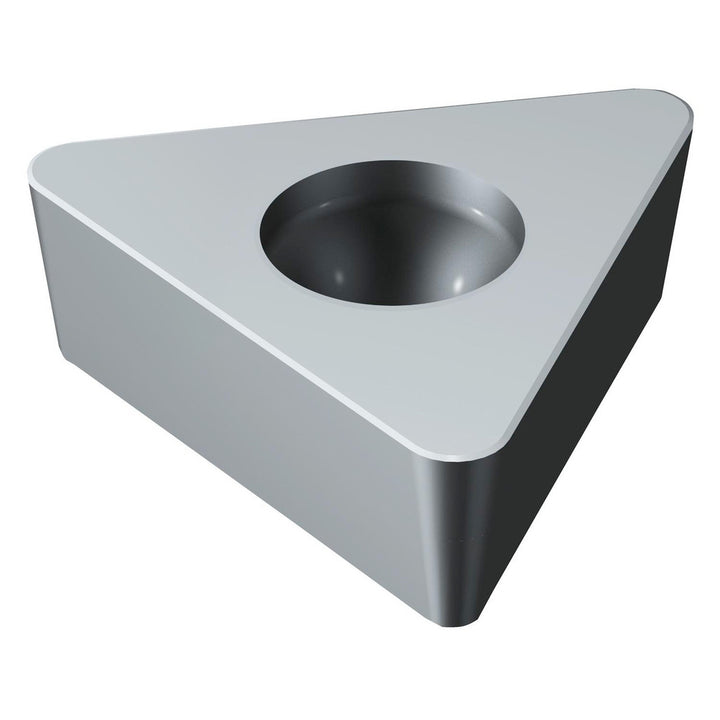

TCMW 16 T3 04 H13A Carbide Insert, Grade H13A - Sandvik Coromant 5752847
MFR# 5752847ISO/ANSI# TCMW 16 T3 04 H13ASeries CoroTurn 107
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5752847 is a TCMW 16 T3 04 H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerCMW
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMW
Insert thickness in5/32
Iso codeTCMW 16 T3 04 H13A
Length range0.6000 - 0.6500
Manufacturer gradeH13A
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
