Sandvik Coromant

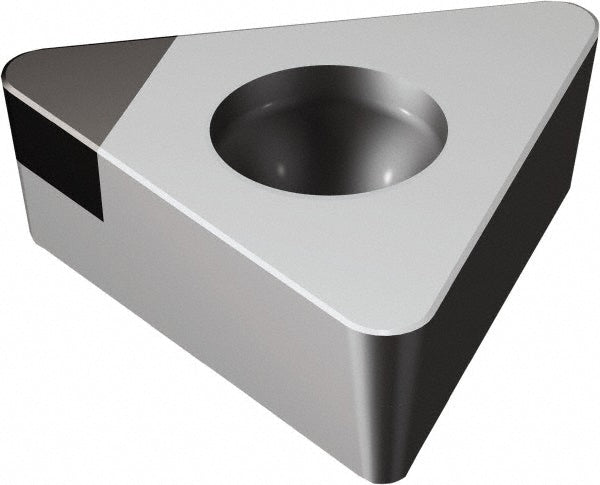

TCMW110304FP CD10 Carbide Insert, Grade CD10 - Sandvik Coromant 5752857
MFR# 5752857ISO/ANSI# TCMW110304FP CD10Series CoroTurn 107
$140.63List $180.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCD10
MaterialCarbide
Description
The Sandvik Coromant 5752857 is a TCMW110304FP CD10 carbide indexable insert, grade CD10. Suited for non-ferrous metal.
Specifications
Chip breakerFP
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1063
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMW
Insert thickness in1/8
Iso codeTCMW110304FP CD10
Length range0.0000 - 0.3000
Manufacturer gradeCD10
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Tolerance codeM
Wiper edgeNo
