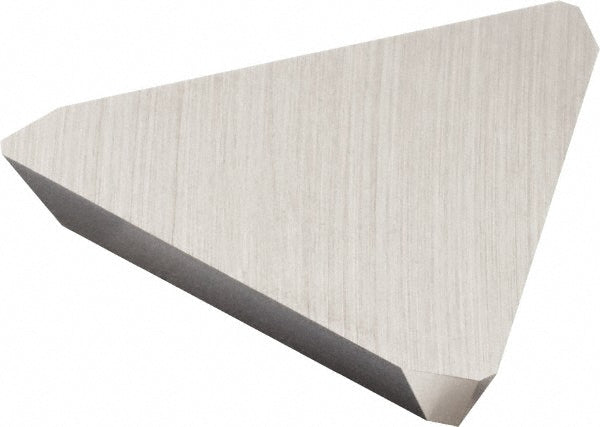

TFAN 22 03 PF R H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5752928

Sandvik Coromant

TFAN 22 03 PF R H10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5752928

MFR# 5752928ISO/ANSI# TFAN 22 03 PF R H10Cat# TFA 42P3R H10Series TFA

$35.45List $45.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeH10
MaterialSolid Carbide

Description

The Sandvik Coromant 5752928 is a TFAN 22 03 PF R H10 solid carbide indexable insert, grade H10. Suited for cast iron, non-ferrous metal.

Specifications

Ansi codeTFA 42P3R H10
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0980
Cutting edge styleCorner Rounded
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size4
Insert size code42
Insert styleTFA
Iso codeTFAN 22 03 PF R H10
Length0.7087
Length range0.7000 to 0.9000
Manufacturers catalog numberTFA 42P3R H10
Manufacturer gradeH10
Material applicationCast Iron; Non-Ferrous Metal
Material gradeN10
Maximum depth of cut0.7087
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Rake angle0
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
