Sandvik Coromant
TLG-3078L 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753053
MFR# 5753053ISO/ANSI# TLG-3078L 1125Cat# TLG-3078L 1125Series Top Lok
$42.80List $54.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description

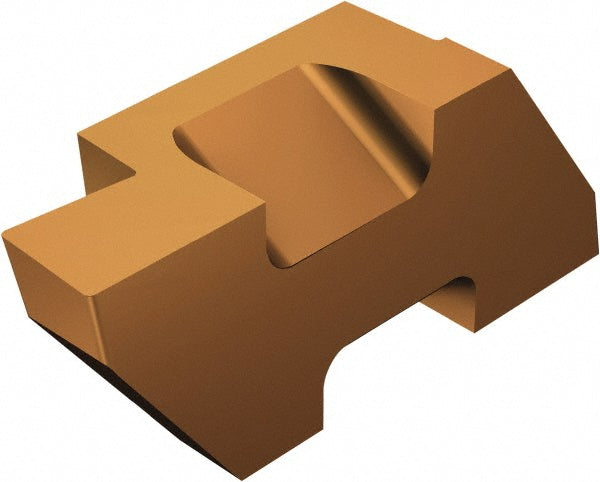

The Sandvik Coromant 5753053 is a TLG-3078L 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0780
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLG
Insert thickness0.3440
Iso codeTLG-3078L 1125
Manufacturers catalog numberTLG-3078L 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0075
Multi use toolYes
Overall length0.6339
Overall width0.0780
RakeNeutral
Rake angle10.00
