Sandvik Coromant

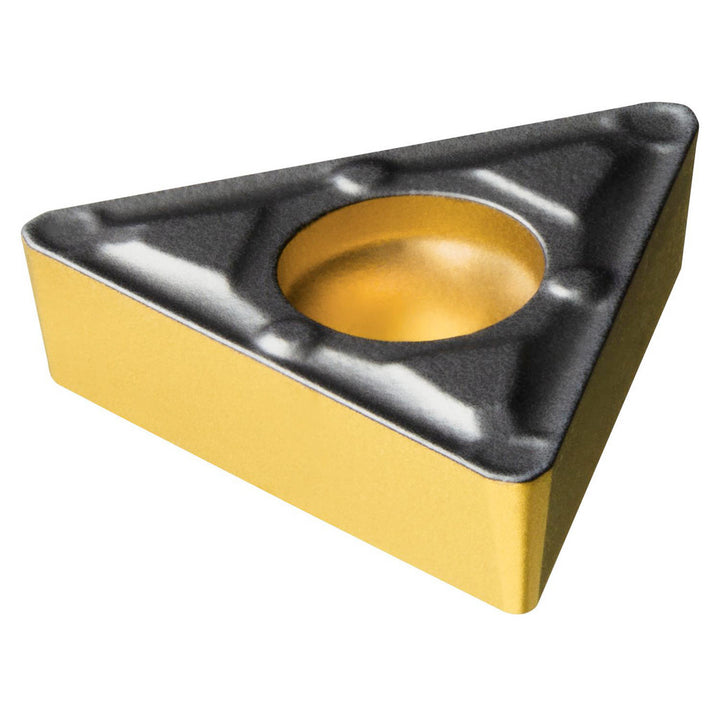

TCMX 16 T3 04-WF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5753054
MFR# 5753054ISO/ANSI# TCMX 16 T3 04-WF 1515Series CoroTurn 107
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5753054 is a TCMX 16 T3 04-WF 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMX
Insert thickness in5/32
Iso codeTCMX 16 T3 04-WF 1515
Length range0.6000 - 0.6500
Manufacturer grade1515
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
