TLT-4R 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5753295
MFR# 5753295ISO/ANSI# TLT-4R 1125Series Top Lok
$53.56List $68.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description

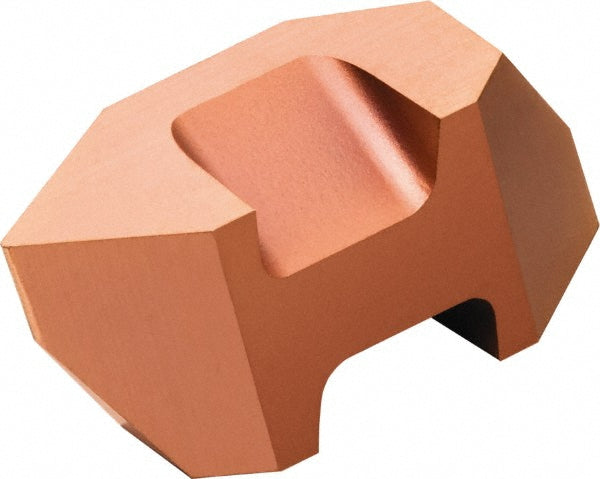

The Sandvik Coromant 5753295 is a TLT-4R 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0065
External pitch1.25-6.25 mm; 4-20 TPI
Finish coatingTiAlN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size4
Insert styleTLT..R
Internal pitch1.25 to 6.25 mm; 4 to 20 TPI
Iso codeTLT-4R 1125
Manufacturer grade1125
Thickness0.453
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.4530
Width of cutting tip0.2550
