Sandvik Coromant
TLRP-3031L 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5753324
MFR# 5753324ISO/ANSI# TLRP-3031L 1125Cat# TLRP-3031L 1125Series Top Lok
$42.80List $54.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description

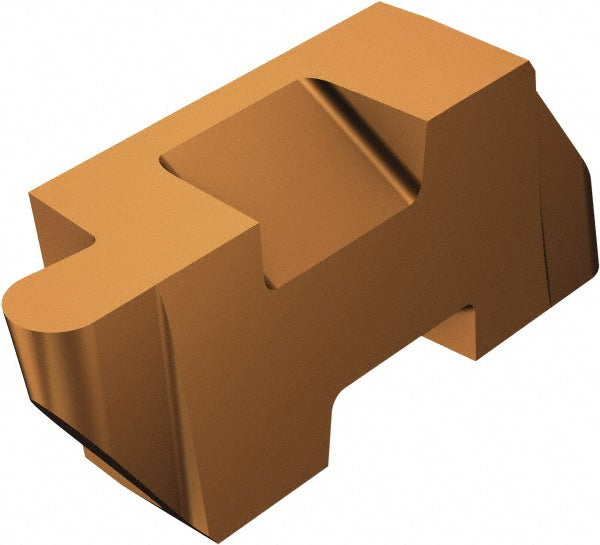

The Sandvik Coromant 5753324 is a TLRP-3031L 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerTLRP
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Cutting height0.3440
Cutting width0.0620
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3L
Insert styleTLRP
Insert thickness0.3440
Iso codeTLRP-3031L 1125
Manufacturers catalog numberTLRP-3031L 1125
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0310
Multi use toolYes
RakePositive
