Sandvik Coromant

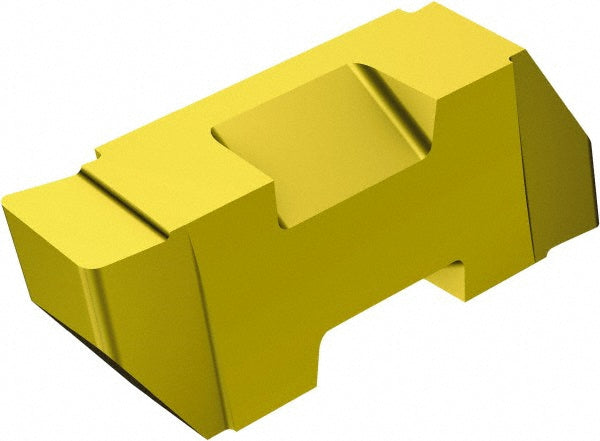

TLGP3142R2135 Carbide Insert, Grade 2135, TiCN - Sandvik Coromant 5753326
MFR# 5753326ISO/ANSI# TLGP3142R2135Series Top Lok
$38.91List $49.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5753326 is a TLGP3142R2135 carbide indexable insert, grade 2135, TiCN coated.
Specifications
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0125
Cutting width0.1420
Insert handRight Hand
Insert materialCarbide
Insert size3142
Insert styleTLGP
Insert thickness0.3440
Iso codeTLGP3142R2135
Manufacturers catalog number5753326
Manufacturer grade2135
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeDecimal Inch
Multi use toolYes
Rake angle10
