Sandvik Coromant

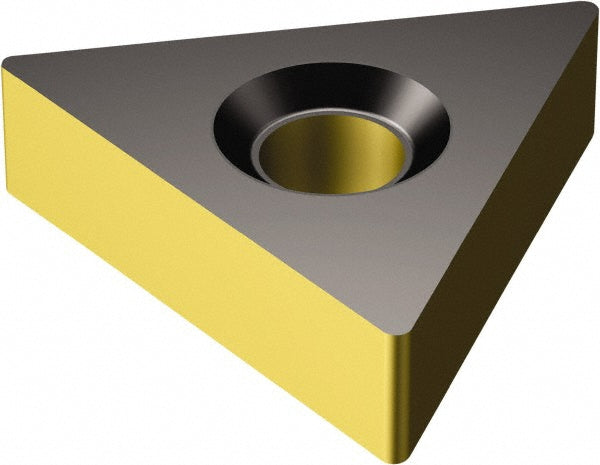

TNMA 16 04 08-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5753425
MFR# 5753425ISO/ANSI# TNMA 16 04 08-KR 3210
$16.71List $21.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5753425 is a TNMA 16 04 08-KR 3210 carbide indexable insert, grade 3210, TiCN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMA
Insert thickness in3/16
Iso codeTNMA 16 04 08-KR 3210
Length range0.6000 - 0.6500
Manufacturer grade3210
Relief angle0
Tolerance codeM
