Sandvik Coromant

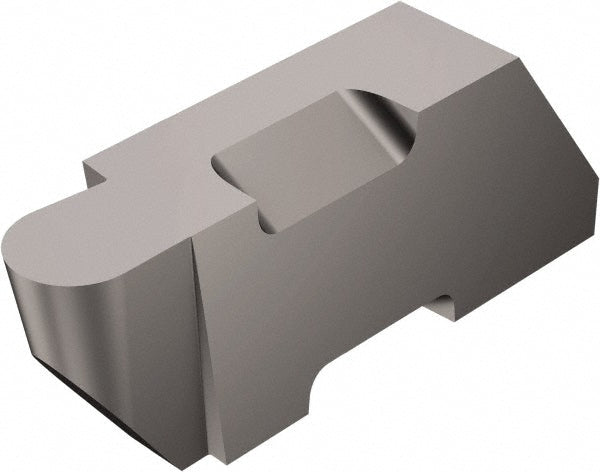

TLR-3031R H13A Solid Carbide Insert - Sandvik Coromant 5753430
MFR# 5753430ISO/ANSI# TLR-3031R H13ACat# TLR-3031R H13ASeries Top Lok
$31.11List $39.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
Description
The Sandvik Coromant 5753430 is a TLR-3031R H13A solid carbide indexable insert.
Specifications
Chip breakerTLR
Corner radius0.0310
Cutting height0.3440
Cutting width0.0620
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3R
Insert styleTLR
Insert thickness0.3440
Iso codeTLR-3031R H13A
Manufacturers catalog numberTLR-3031R H13A
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0310
Multi use toolYes
Overall width0.0620
RakePositive
