Sandvik Coromant

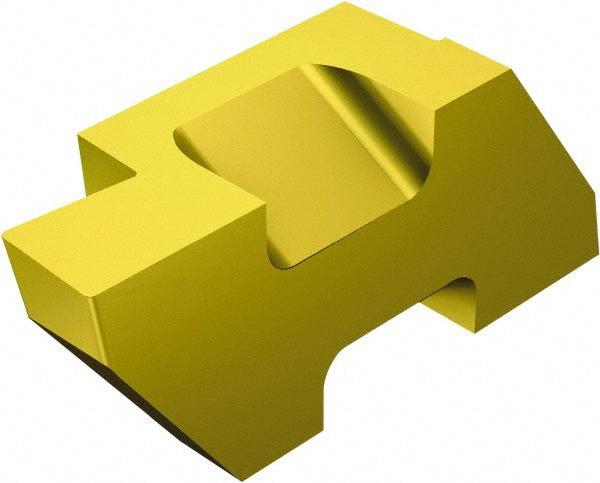

TLG-3094R 2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5753642
MFR# 5753642ISO/ANSI# TLG-3094R 2135Cat# TLG-3094R 2135Series Top Lok
$38.91List $49.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5753642 is a TLG-3094R 2135 solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0075
Cutting height0.3440
Cutting width in3/32
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLG
Insert thickness0.3440
Iso codeTLG-3094R 2135
Manufacturers catalog numberTLG-3094R 2135
Manufacturer grade2135
Maximum corner radius0.0075
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0075
Multi use toolYes
Overall length0.6339
Overall width0.0940
RakeNeutral
Rake angle10.00
