Sandvik Coromant

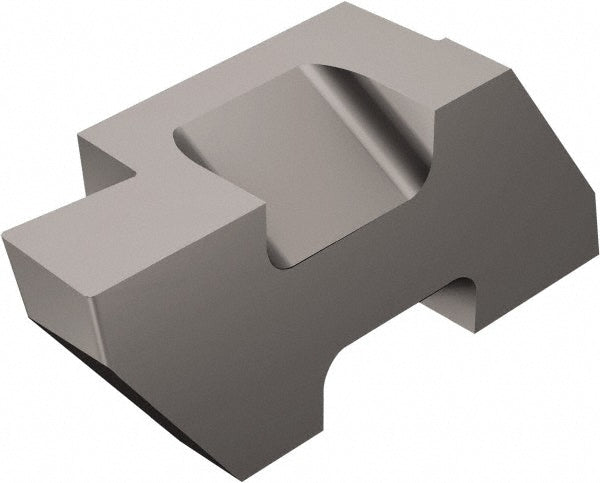

TLG-4189L H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5753734
MFR# 5753734ISO/ANSI# TLG-4189L H13ACat# TLG-4189L H13ASeries Top Lok
$48.73List $62.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5753734 is a TLG-4189L H13A solid carbide indexable insert, grade H13A.
Specifications
Corner radius0.0225
Cutting height0.4530
Cutting width0.1890
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size4
Insert size4
Insert styleTLG
Insert thickness0.4530
Iso codeTLG-4189L H13A
Manufacturers catalog numberTLG-4189L H13A
Manufacturer gradeH13A
Maximum corner radius0.0225
Maximum depth of cut in1/4
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0225
Multi use toolYes
Overall length0.7598
Overall width0.1890
RakeNeutral
Rake angle10.00
