Sandvik Coromant

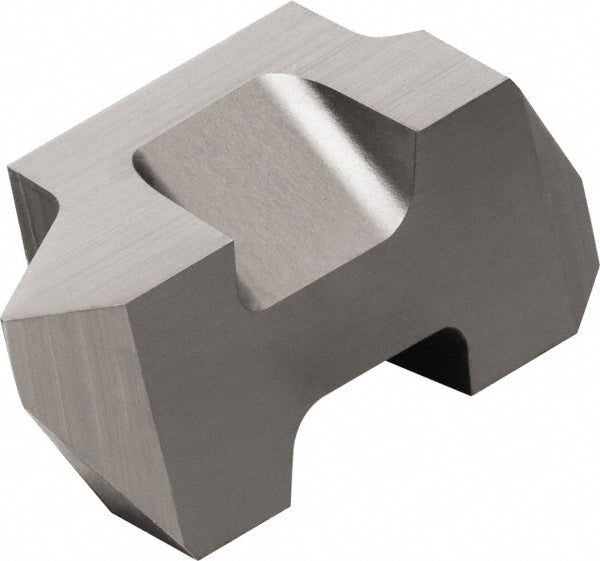

TLTP-3R H13A Carbide Insert, Grade H13A - Sandvik Coromant 5753753
MFR# 5753753ISO/ANSI# TLTP-3R H13ASeries Top Lok
$31.11List $39.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5753753 is a TLTP-3R H13A carbide indexable insert, grade H13A.
Specifications
Coating processUncoated
Corner radius0.0065
External pitch1.25-5.00 mm; 5-20 TPI
Finish coatingBright/Uncoated
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleTLTP
Internal pitch1.25 to 5.00 mm; 5 to 20 TPI
Iso codeTLTP-3R H13A
Manufacturer gradeH13A
Thickness0.3440in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.3440
Width of cutting tip0.1950
