Sandvik Coromant

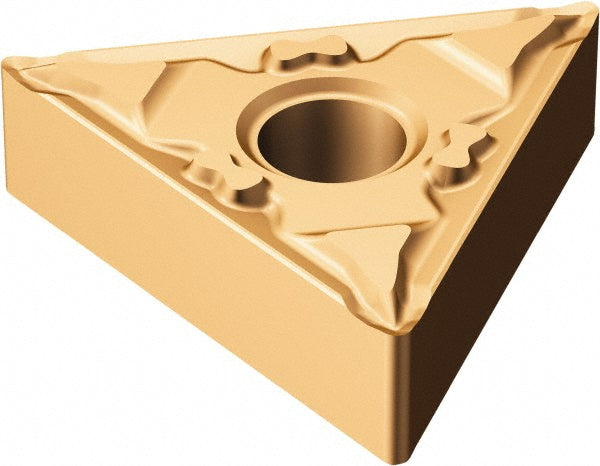

TNMG 16 04 04-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5753816
MFR# 5753816ISO/ANSI# TNMG 16 04 04-MF 1125Series T-Max P
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5753816 is a TNMG 16 04 04-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 04-MF 1125
Length range0.6000 - 0.6500
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
