Sandvik Coromant

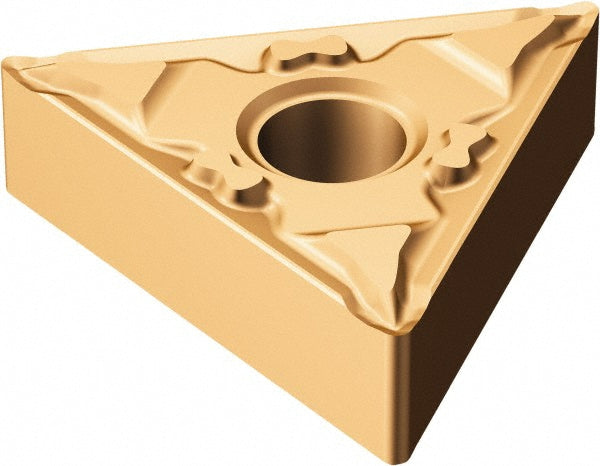

TNMG 16 04 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5753916
MFR# 5753916ISO/ANSI# TNMG 16 04 08-MF 1125Series T-Max P
$17.09List $21.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5753916 is a TNMG 16 04 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-MF 1125
Length range0.6000 - 0.6500
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
