Sandvik Coromant

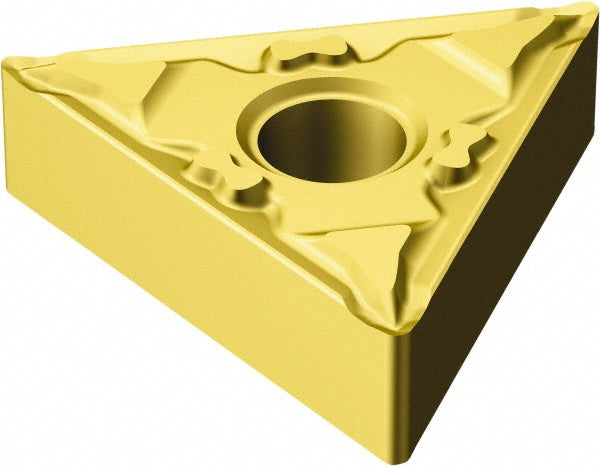

TNMG 16 04 08-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5753917
MFR# 5753917ISO/ANSI# TNMG 16 04 08-MF 2015Series T-Max P
$16.42List $21.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5753917 is a TNMG 16 04 08-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-MF 2015
Length range0.6000 - 0.6500
Manufacturer grade2015
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
