Sandvik Coromant

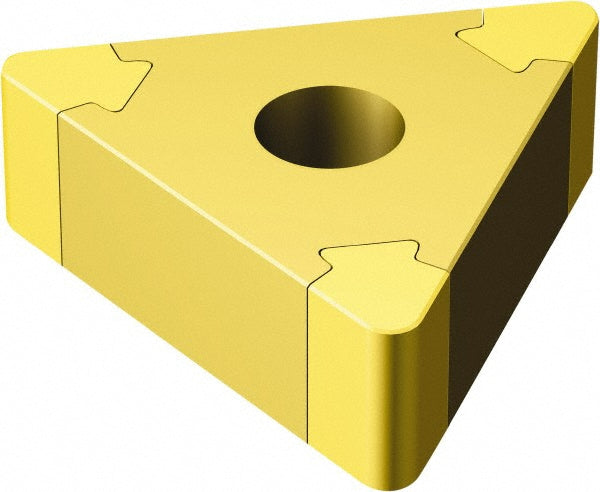

TNGA160408S01030A 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5754004
MFR# 5754004ISO/ANSI# TNGA160408S01030A 7015
$229.89List $294.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade7015
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5754004 is a TNGA160408S01030A 7015 carbide indexable insert, grade 7015, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.1063
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNGA
Insert thickness in3/16
Iso codeTNGA160408S01030A 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Relief angle0
Tolerance codeG
