Sandvik Coromant

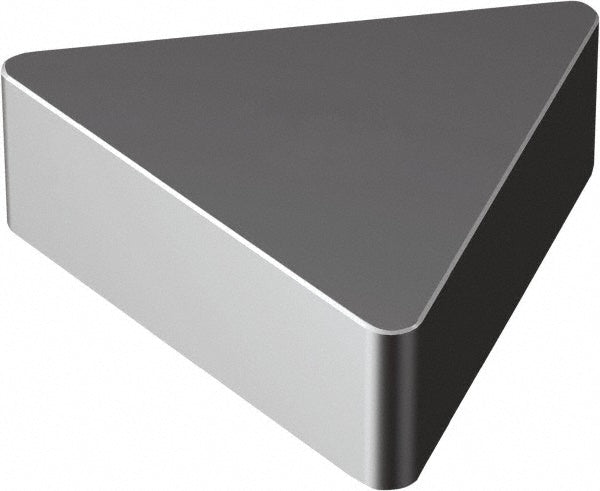

TNGA 16 04 08T01020 650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5754045
MFR# 5754045ISO/ANSI# TNGA 16 04 08T01020 650
$15.96List $20.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade650
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5754045 is a TNGA 16 04 08T01020 650 ceramic indexable insert, grade 650, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6180
Insert materialCeramic
Insert shapeTriangle
Insert size code332
Insert styleTNGA
Insert thickness in3/16
Iso codeTNGA 16 04 08T01020 650
Length range0.6000 - 0.6500
Manufacturer grade650
Relief angle0
Tolerance codeG
