Sandvik Coromant

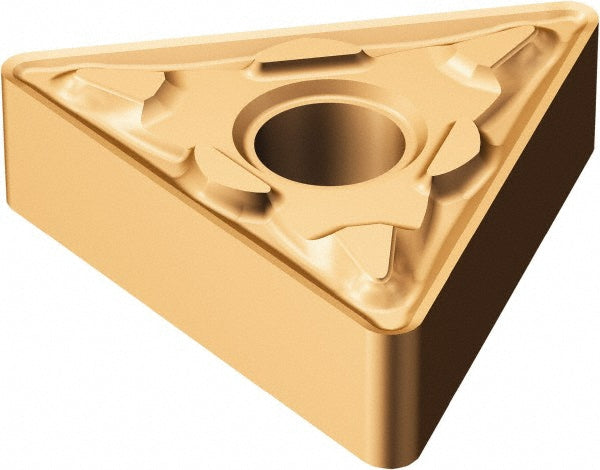

TNMG 22 04 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5754195
MFR# 5754195ISO/ANSI# TNMG 22 04 08-MM 1125Series T-Max P
$21.91List $28.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5754195 is a TNMG 22 04 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8345
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-MM 1125
Length range0.7000 - 10.0000
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
