Sandvik Coromant

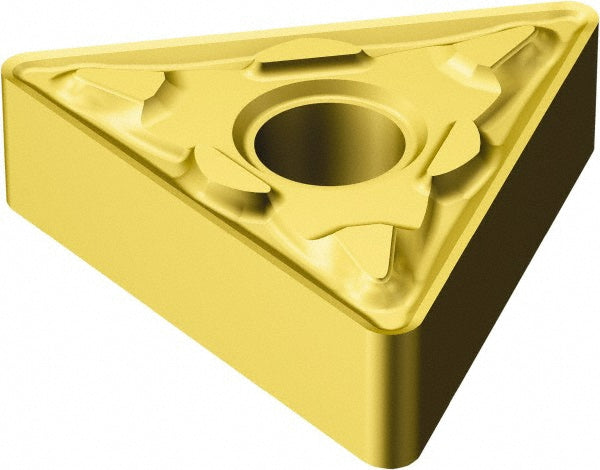

TNMG 22 04 08-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5754239
MFR# 5754239ISO/ANSI# TNMG 22 04 08-MM 2035Series T-Max P
$20.51List $26.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5754239 is a TNMG 22 04 08-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8345
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-MM 2035
Length range0.7000 - 10.0000
Manufacturer grade2035
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
