Sandvik Coromant

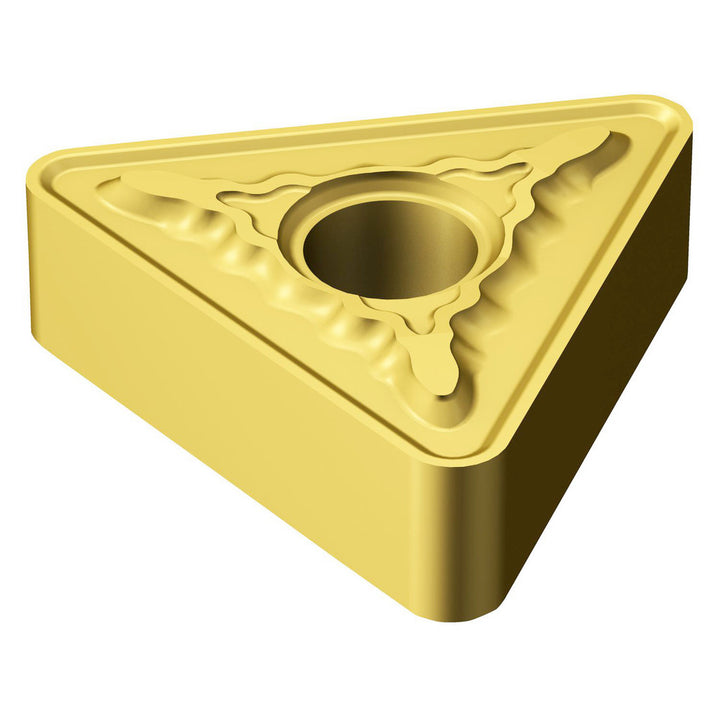

TNMG220408MR235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754251
MFR# 5754251ISO/ANSI# TNMG220408MR235Series T-Max P
$21.64List $27.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754251 is a TNMG220408MR235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2032
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408MR235
Length range0.7000 - 10.0000
Manufacturers catalog number5754251
Manufacturer grade235
Maximum depth of cut0.8346
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
