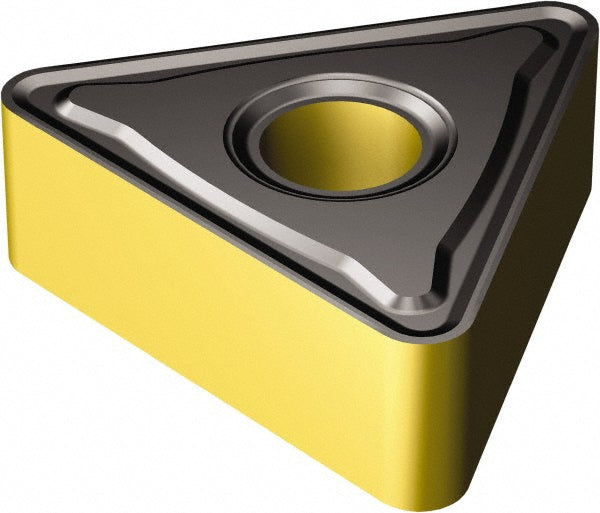

TNMG 22 04 08-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5754316
MFR# 5754316ISO/ANSI# TNMG 22 04 08-KR 3210Series T-Max P
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754316 is a TNMG 22 04 08-KR 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.2032
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-KR 3210
Length range0.7000 - 10.0000
Manufacturers catalog number5754316
Manufacturer grade3210
Maximum depth of cut0.8346
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
