Sandvik Coromant

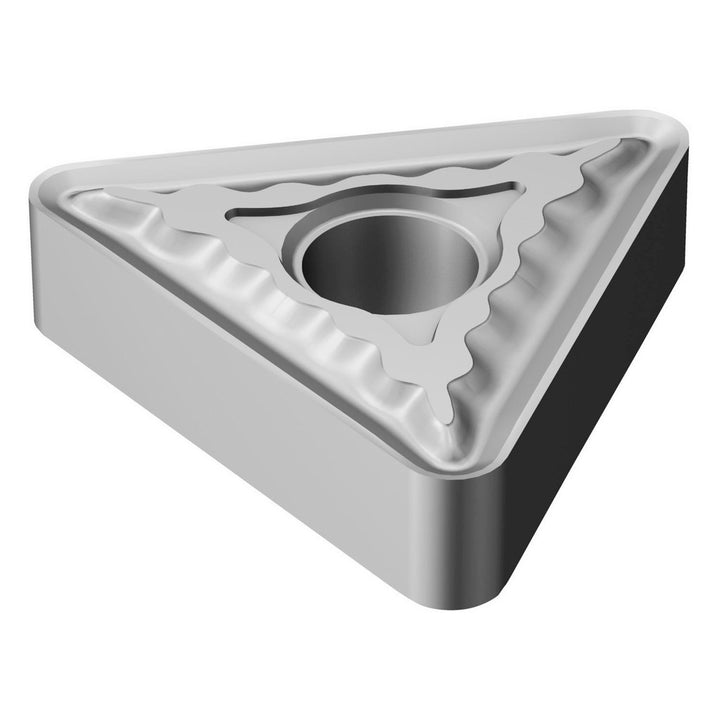

TNMG 22 04 12-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5754371
MFR# 5754371ISO/ANSI# TNMG 22 04 12-QM H13ASeries T-Max P
$17.22List $22.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5754371 is a TNMG 22 04 12-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in3/64
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8188
Insert materialCarbide
Insert shapeTriangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 12-QM H13A
Length range0.7000 - 10.0000
Manufacturer gradeH13A
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
