Sandvik Coromant

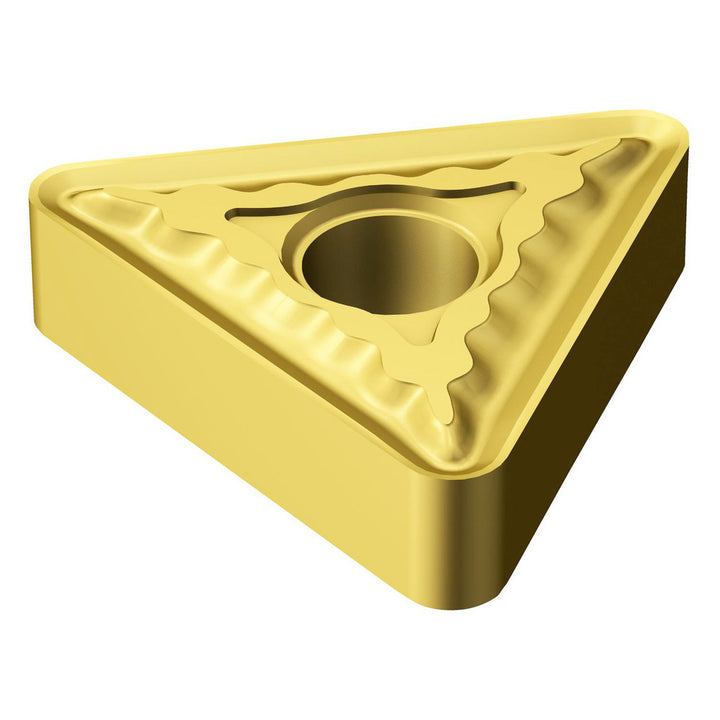

TNMG220412QM235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754373
MFR# 5754373ISO/ANSI# TNMG220412Series T-Max P
$21.52List $27.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754373 is a TNMG220412QM235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTNMG433
Ansi size code433
Chip breakerQM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2032
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220412QM235
Iso insert codeTNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number5754373
Manufacturer grade235
Maximum depth of cut0.8189
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
