Sandvik Coromant

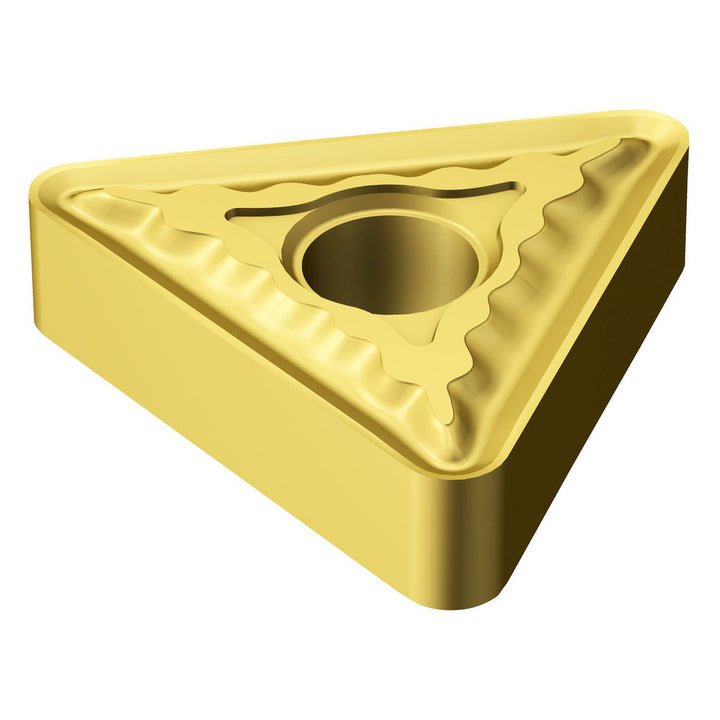

TNMG 27 06 12-QM 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5754416
MFR# 5754416ISO/ANSI# TNMG 27 06 12-QM 235Series T-Max P
$33.99List $43.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754416 is a TNMG 27 06 12-QM 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2500
Included angle60
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0353
Insert materialCarbide
Insert shapeTriangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG 27 06 12-QM 235
Length range0.7000 - 10.0000
Manufacturer grade235
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
