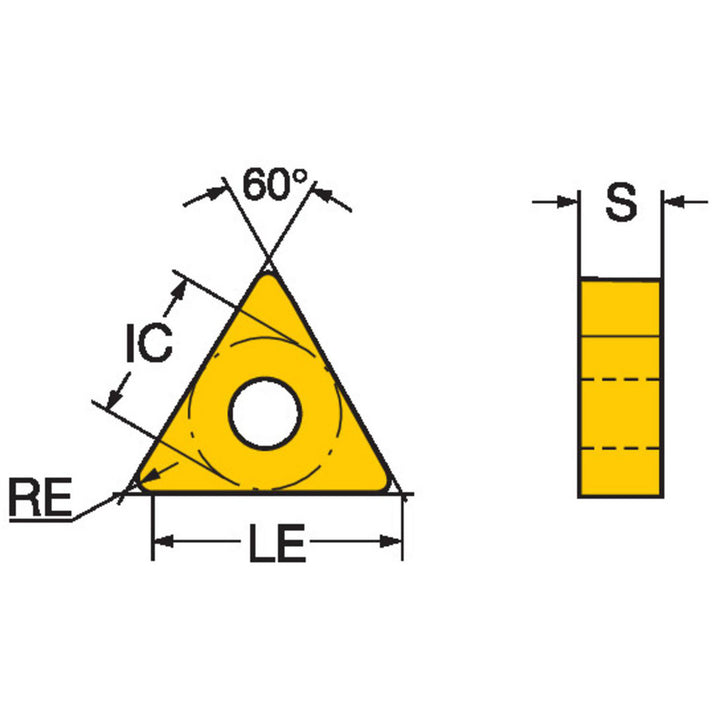

TNMX 16 04 04-WF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5754692
MFR# 5754692ISO/ANSI# TNMX 16 04 04-WF 1525Series T-Max P
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754692 is a TNMX 16 04 04-WF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMX
Insert thickness in3/16
Iso codeTNMX 16 04 04-WF 1525
Length range0.6000 - 0.6500
Manufacturer grade1525
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
