Sandvik Coromant

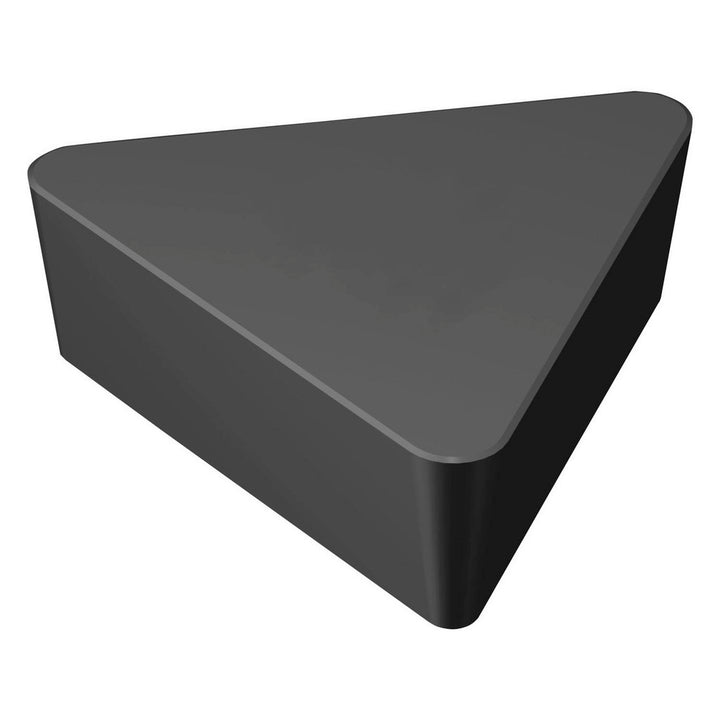

TPGN 16 03 04T01020 650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5754924
MFR# 5754924ISO/ANSI# TPGN 16 03 04T01020 650
$15.40List $19.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade650
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5754924 is a TPGN 16 03 04T01020 650 ceramic indexable insert, grade 650, TiN coated.
Specifications
Chip breakerN
Clearance codeP
Coating finishTiN
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.6338
Insert materialCeramic
Insert shapeTriangle
Insert size code321
Insert styleTPGN
Insert thickness in1/8
Iso codeTPGN 16 03 04T01020 650
Length range0.6000 - 0.6500
Manufacturer grade650
Relief angle11
Tolerance codeG
