Sandvik Coromant

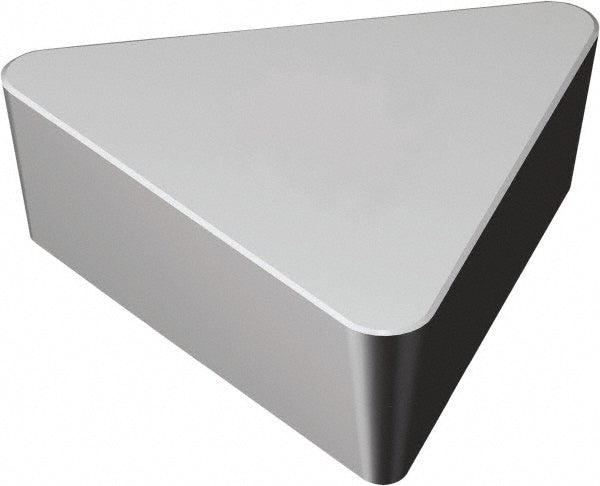

TPGN 16 03 08 H13A Carbide Insert, Grade H13A - Sandvik Coromant 5754934
MFR# 5754934ISO/ANSI# TPGN 16 03 08 H13A
$21.14List $27.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5754934 is a TPGN 16 03 08 H13A carbide indexable insert, grade H13A.
Specifications
Chip breakerN
Clearance codeP
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPGN
Insert thickness in1/8
Iso codeTPGN 16 03 08 H13A
Length range0.6000 - 0.6500
Manufacturer gradeH13A
Relief angle11
Tolerance codeG
