Sandvik Coromant

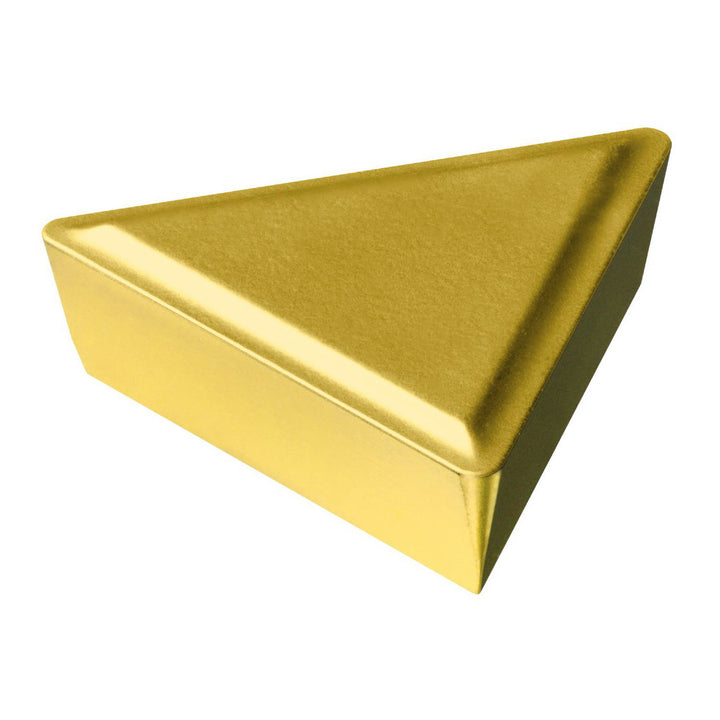

TPMR 11 03 04 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754960
MFR# 5754960ISO/ANSI# TPMR 11 03 04 2025Series T-Max S
$11.79List $15.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754960 is a TPMR 11 03 04 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4173
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR 11 03 04 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
