Sandvik Coromant

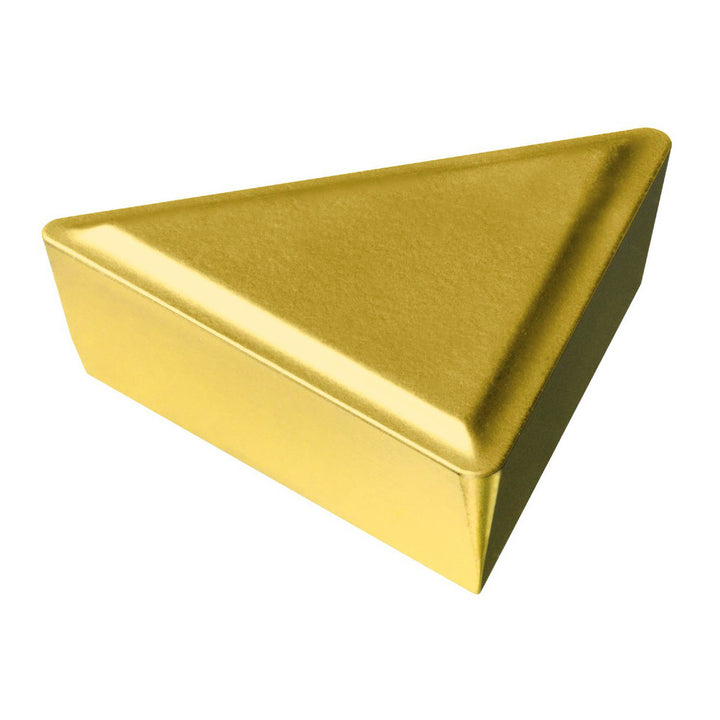

TPMR 16 03 04 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754970
MFR# 5754970ISO/ANSI# TPMR 16 03 04 2025Series T-Max S
$16.96List $21.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5754970 is a TPMR 16 03 04 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR 16 03 04 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
