Sandvik Coromant
TPMT 11 02 08-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755007
MFR# 5755007ISO/ANSI# TPMT 11 02 08-UM 1125Series CoroTurn 107
$15.51List $19.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description

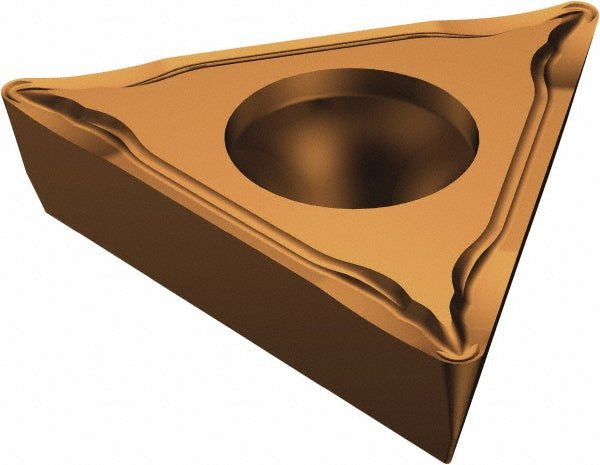

The Sandvik Coromant 5755007 is a TPMT 11 02 08-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4015
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT 11 02 08-UM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
