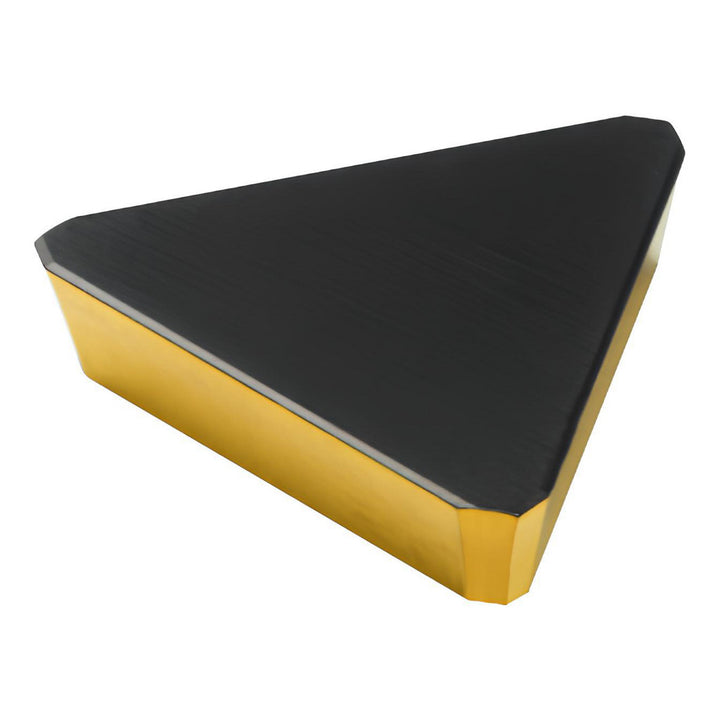

TPKN 16 03 PP R 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5755114

Sandvik Coromant

TPKN 16 03 PP R 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5755114

MFR# 5755114ISO/ANSI# TPKN 16 03 PP R 4230Cat# TPK 32P2 R 4230Series TPK

$20.03List $25.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4230
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5755114 is a TPKN 16 03 PP R 4230 solid carbide indexable insert, grade 4230, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeTPK 32P2 R 4230
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Cutting edge styleRounded
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code32
Insert styleTPK
Iso codeTPKN 16 03 PP R 4230
Length0.5236
Length range0.5000 to 0.6000
Manufacturers catalog numberTPK 32P2 R 4230
Manufacturer grade4230
Material applicationSteel; Cast Iron
Maximum depth of cut0.5236
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
