Sandvik Coromant

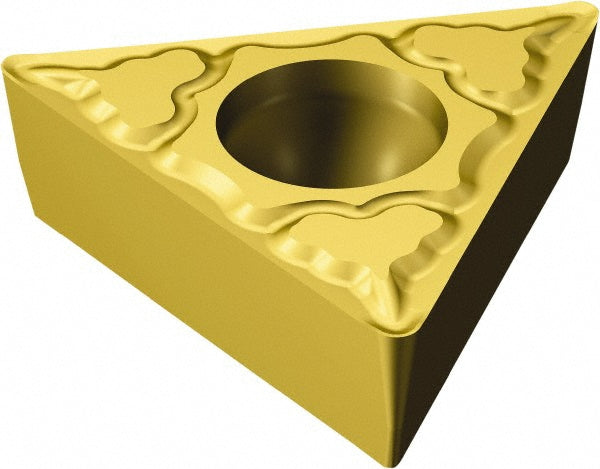

TPMT 16 T3 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755132
MFR# 5755132ISO/ANSI# TPMT 16 T3 08-MM 2025Series CoroTurn 111
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755132 is a TPMT 16 T3 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT 16 T3 08-MM 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
