Sandvik Coromant
TPMR110304532025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755190
MFR# 5755190ISO/ANSI# TPMR110304532025Series T-Max S
$11.79List $15.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description

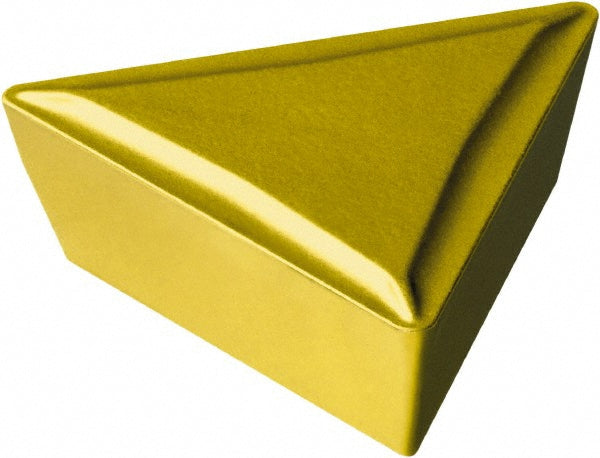

The Sandvik Coromant 5755190 is a TPMR110304532025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerR
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR110304532025
Length range0.4000 - 0.5000
Manufacturers catalog number5755190
Manufacturer grade2025
Maximum depth of cut0.4173
Relief angle11
Tolerance codeM
