Sandvik Coromant

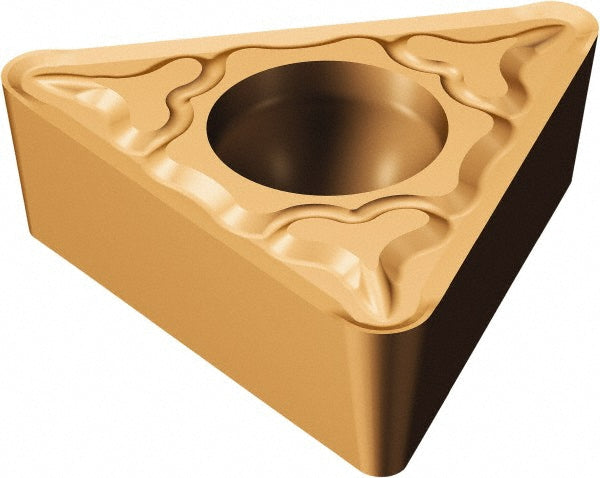

TPMT 16 T3 04-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755215
MFR# 5755215ISO/ANSI# TPMT 16 T3 04-MF 1125Series CoroTurn 111
$21.64List $27.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755215 is a TPMT 16 T3 04-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT 16 T3 04-MF 1125
Length range0.6000 - 0.6500
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
