Sandvik Coromant

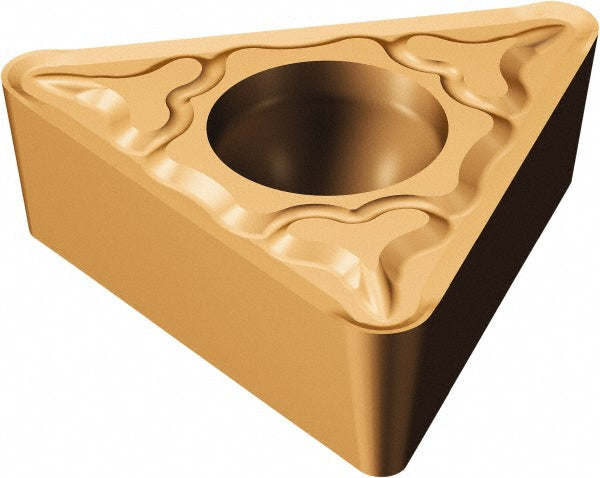

TPMT 09 02 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755284
MFR# 5755284ISO/ANSI# TPMT 09 02 02-MF 1125Series CoroTurn 111
$14.70List $18.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755284 is a TPMT 09 02 02-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.50
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT 09 02 02-MF 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
