Sandvik Coromant

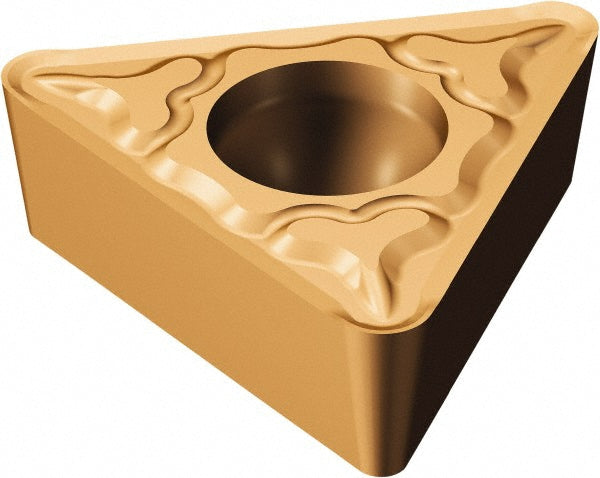

TPMT 06 T1 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755292
MFR# 5755292ISO/ANSI# TPMT 06 T1 02-MF 1125Series CoroTurn 111
$14.70List $18.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755292 is a TPMT 06 T1 02-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert length0.2519
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.20
Insert styleTPMT
Insert thickness in5/64
Iso codeTPMT 06 T1 02-MF 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
