Sandvik Coromant

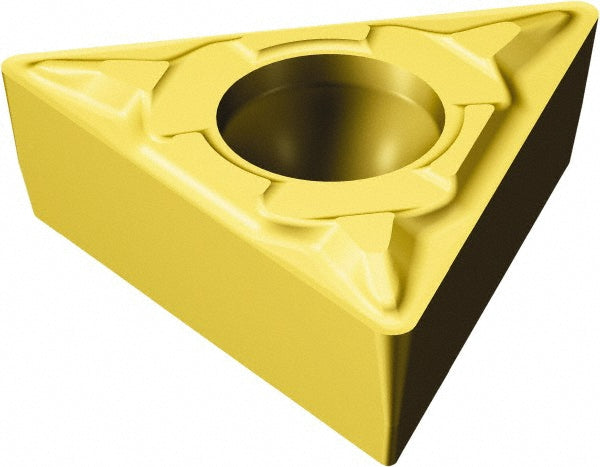

TPMT 09 02 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5755293
MFR# 5755293ISO/ANSI# TPMT 09 02 04-MF 2015Series CoroTurn 111
$13.81List $17.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755293 is a TPMT 09 02 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiCN
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3898
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT 09 02 04-MF 2015
Length range0.3000 - 0.4000
Manufacturers catalog number5755293
Manufacturer grade2015
Maximum depth of cut0.3740
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
