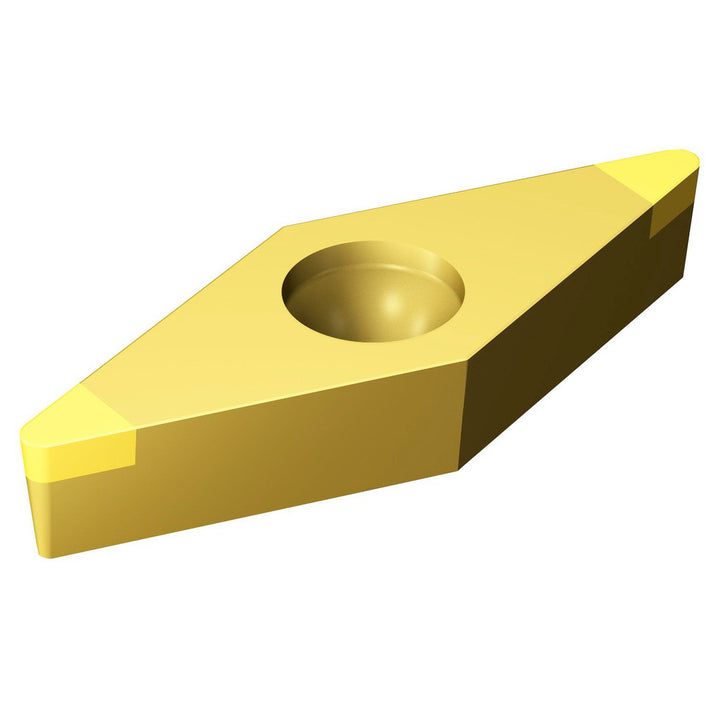

VBGW160408S01020F7015 Cubic Boron Nitride (CBN) Insert, Grade 7015, TiN - Sandvik Coromant 5755386
MFR# 5755386ISO/ANSI# VBGW160408S01020F7015Series CoroTurn 107
$94.31List $120.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7015
MaterialCubic Boron Nitride (CBN)
CoatingTiN
Description
The Sandvik Coromant 5755386 is a VBGW160408S01020F7015 cubic boron nitride (cbn) indexable insert, grade 7015, TiN coated. Suited for hard material.
Specifications
Chip breakerW
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleER Treated; Negative Land
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code332
Insert styleVBGW
Insert thickness in3/16
Iso codeVBGW160408S01020F7015
Length range0.6500 - 0.7000
Manufacturers catalog number5755386
Manufacturer grade7015
Maximum depth of cut0.1181
Number of cutting edges2
Primary workpiece materialHard Material
Relief angle5
Tolerance codeG
Wiper edgeNo
