Sandvik Coromant

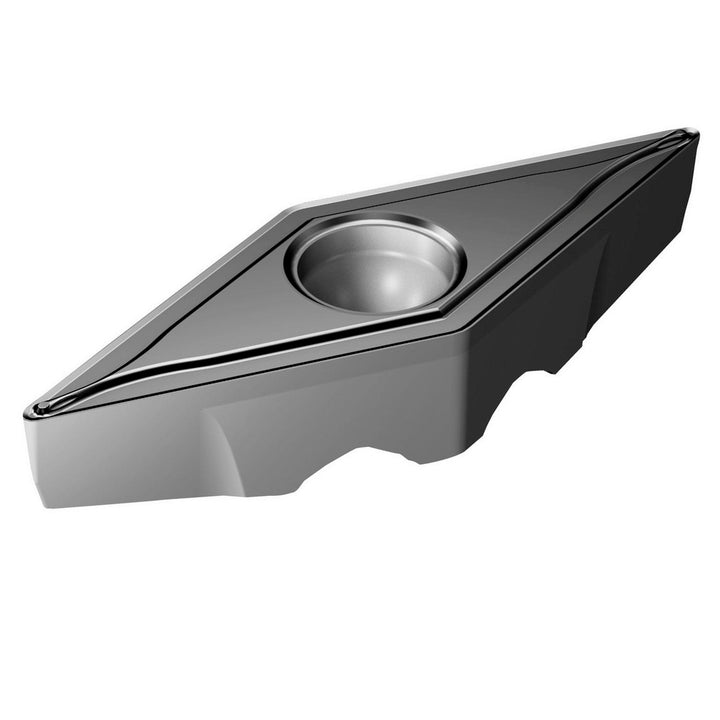

TR-VB1304-F 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5755416
MFR# 5755416ISO/ANSI# TR-VB1304-F 1105Series CoroTurn TR
$28.63List $36.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755416 is a TR-VB1304-F 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1339
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length0.4961
Insert materialCarbide
Insert shapeDiamond
Insert size code1304
Insert styleTRVB
Insert thickness0.1782
Iso codeTR-VB1304-F 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Wiper edgeNo
