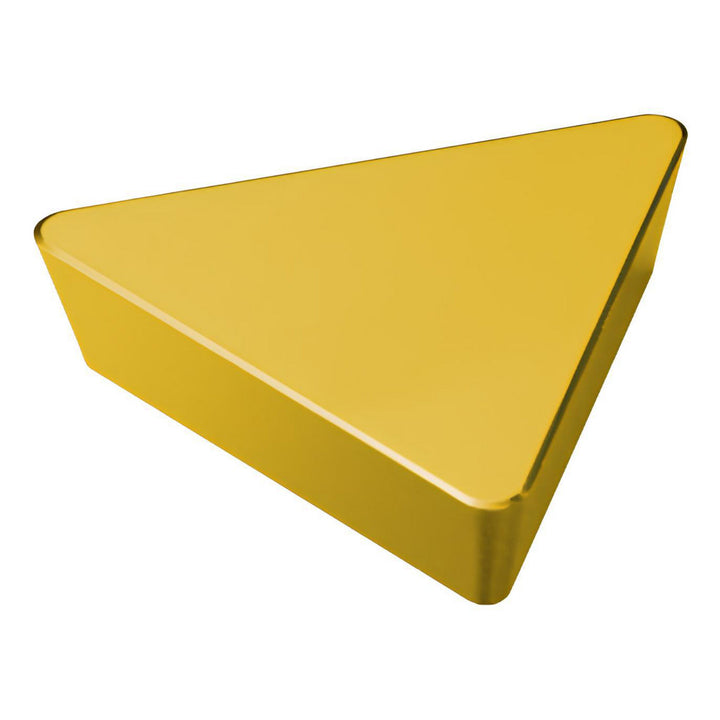

TPMN 16 03 08 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755467

Sandvik Coromant

TPMN 16 03 08 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755467

MFR# 5755467ISO/ANSI# TPMN 16 03 08 235Cat# TPM 322 235Series TPM

$12.88List $16.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5755467 is a TPMN 16 03 08 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeTPM 322 235
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityRTBAP; CTFPL; CTFPR
Cutting edge styleRounded
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code322
Insert styleTPM
Iso codeTPMN 16 03 08 235
Length0.5236
Length range0.5000 to 0.6000
Manufacturers catalog numberTPM 322 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.5236
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
