Sandvik Coromant

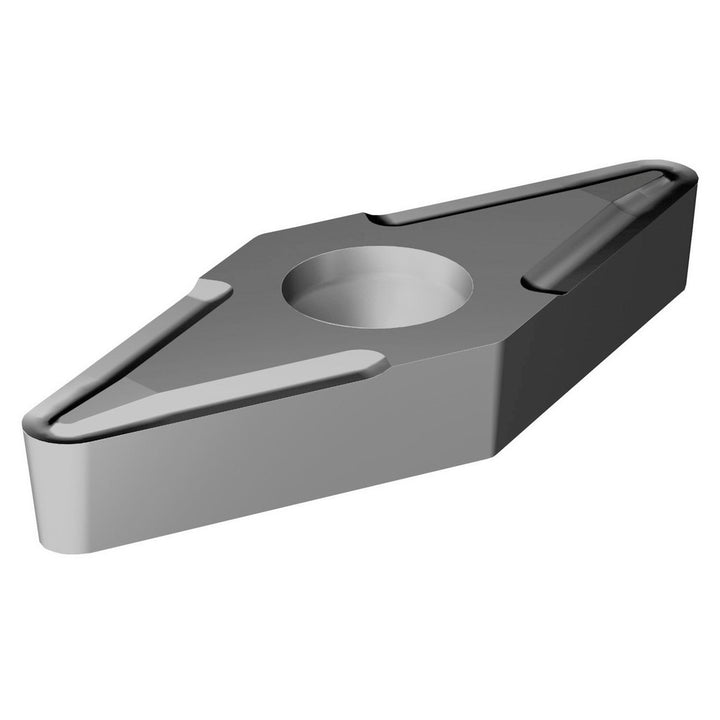

VBMT 11 02 02-UF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5755482
MFR# 5755482ISO/ANSI# VBMT 11 02 02-UF H13ASeries CoroTurn 107
$17.68List $22.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5755482 is a VBMT 11 02 02-UF H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUF
Clearance codeB
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4280
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 02-UF H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
