Sandvik Coromant

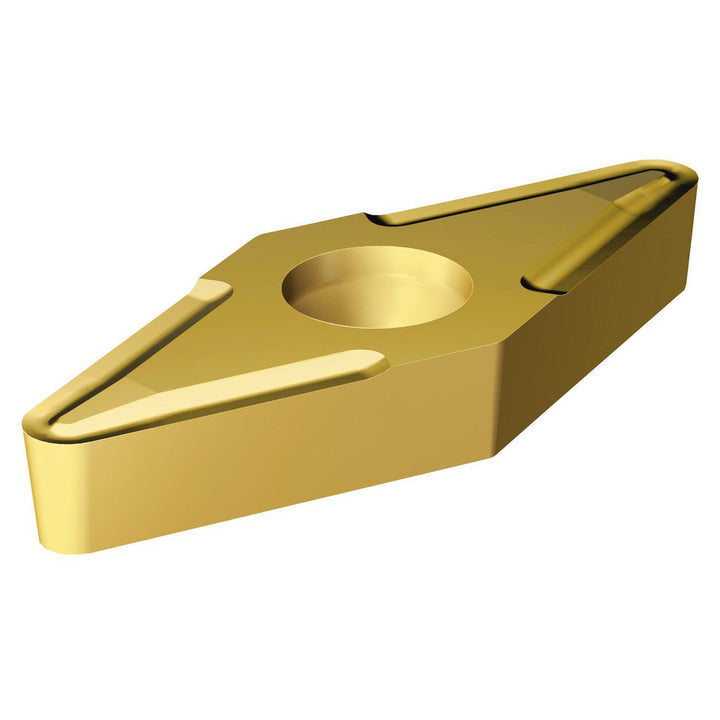

VBMT 11 02 04-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755489
MFR# 5755489ISO/ANSI# VBMT 11 02 04-UF 235Series CoroTurn 107
$22.19List $28.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755489 is a VBMT 11 02 04-UF 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4201
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 04-UF 235
Length range0.4000 - 0.5000
Manufacturer grade235
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
