Sandvik Coromant

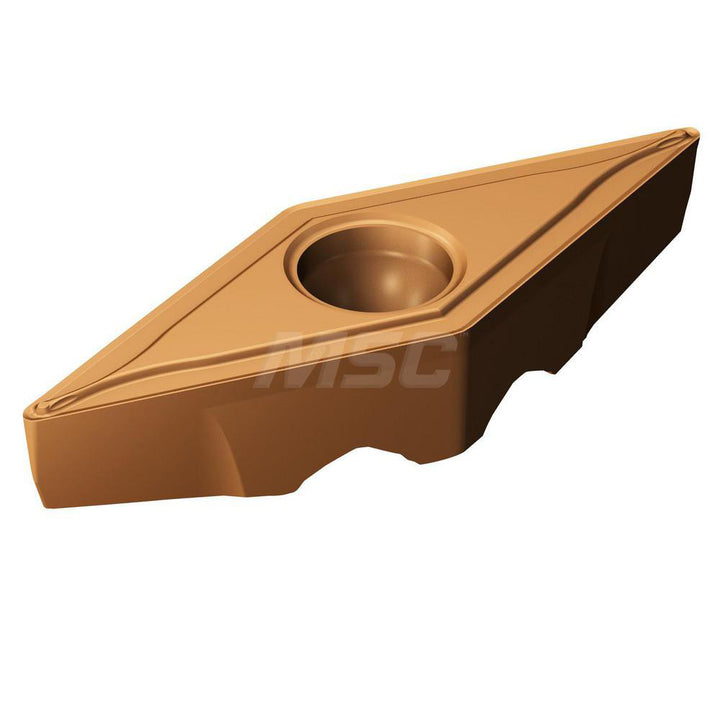

TRVB1312F1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755505
MFR# 5755505ISO/ANSI# TRVB1312F1125Series CoroTurn TR
$28.63List $36.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755505 is a TRVB1312F1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.1339
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length0.5118
Insert materialCarbide
Insert shapeDiamond
Insert size code1312
Insert styleTRVB
Insert thickness0.1782
Iso codeTRVB1312F1125
Length range0.5000 - 0.6000
Manufacturers catalog number5755505
Manufacturer grade1125
Maximum depth of cut0.4646
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Wiper edgeNo
