Sandvik Coromant
VBMT 11 03 02-PF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5755526
MFR# 5755526ISO/ANSI# VBMT 11 03 02-PF 1515
$24.33List $31.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description

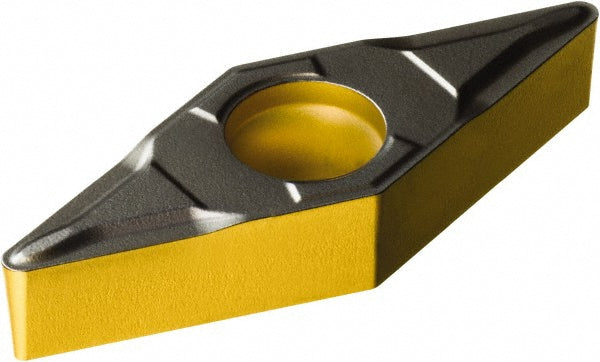

The Sandvik Coromant 5755526 is a VBMT 11 03 02-PF 1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishTiCN
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4280
Insert materialCarbide
Insert shapeDiamond
Insert size code220
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 02-PF 1515
Length range0.4000 - 0.5000
Manufacturer grade1515
Relief angle5
Tolerance codeM
