Sandvik Coromant

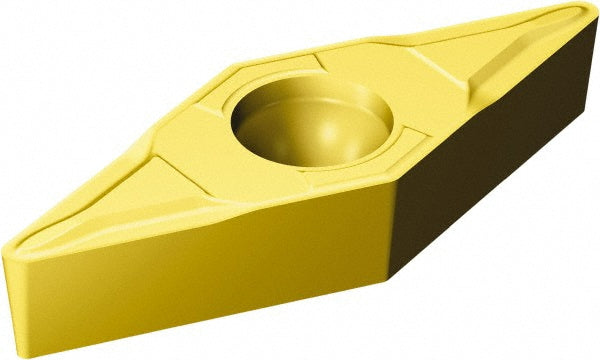

VBMT 11 03 02-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5755530
MFR# 5755530ISO/ANSI# VBMT 11 03 02-PF 1525Series CoroTurn 107
$22.19List $28.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755530 is a VBMT 11 03 02-PF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4280
Insert materialCarbide
Insert shapeDiamond
Insert size code220
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 02-PF 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
