Sandvik Coromant
VBMT 11 02 08-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755551
MFR# 5755551ISO/ANSI# VBMT 11 02 08-UF 235
$22.19List $28.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade235
MaterialCarbide
CoatingTiCN
Description

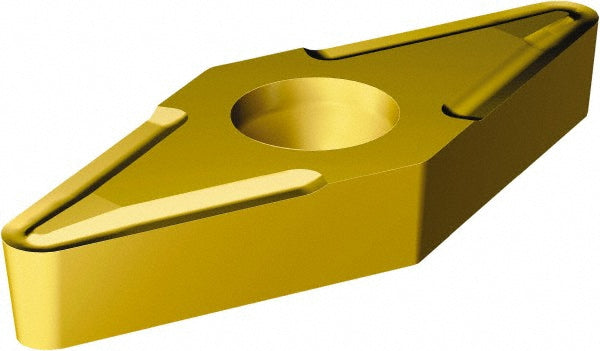

The Sandvik Coromant 5755551 is a VBMT 11 02 08-UF 235 carbide indexable insert, grade 235, TiCN coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4044
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 08-UF 235
Length range0.4000 - 0.5000
Manufacturer grade235
Relief angle5
Tolerance codeM
