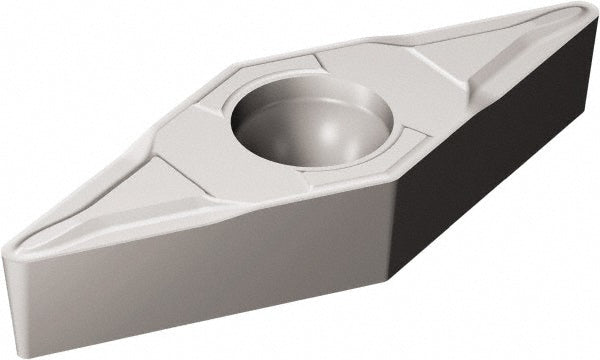

VBMT 11 03 04-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5755612

Sandvik Coromant

VBMT 11 03 04-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5755612

MFR# 5755612ISO/ANSI# VBMT110304Series CoroTurn 107

$22.19List $28.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade5015
MaterialCermet

Description

The Sandvik Coromant 5755612 is a VBMT 11 03 04-PF 5015 cermet indexable insert, grade 5015. Suited for steel.

Specifications

Ansi insert codeVBMT221
Ansi size code221
Chip breakerPF
Chip breaker operationFinishing
Clearance codeB
Coating processUncoated
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 04-PF 5015
Iso insert codeVBMT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number5755612
Manufacturer grade5015
Maximum depth of cut0.4201
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
