Sandvik Coromant

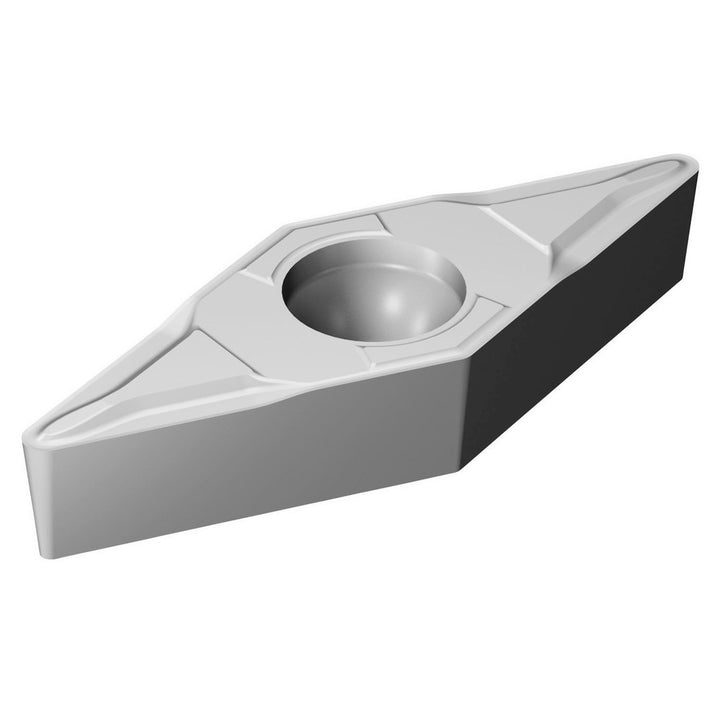

VBMT110304KFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5755614
MFR# 5755614ISO/ANSI# VBMT110304Series CoroTurn 107
$17.68List $22.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5755614 is a VBMT110304KFH13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Ansi insert codeVBMT221
Ansi size code221
Chip breakerKF
Chip breaker operationFinishing
Clearance codeB
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110304KFH13A
Iso insert codeVBMT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number5755614
Manufacturer gradeH13A
Maximum depth of cut0.4201
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle5
Secondary workpiece materialNon-Ferrous Metal
Side clearancePositive
Tolerance codeM
Wiper edgeNo
