Sandvik Coromant

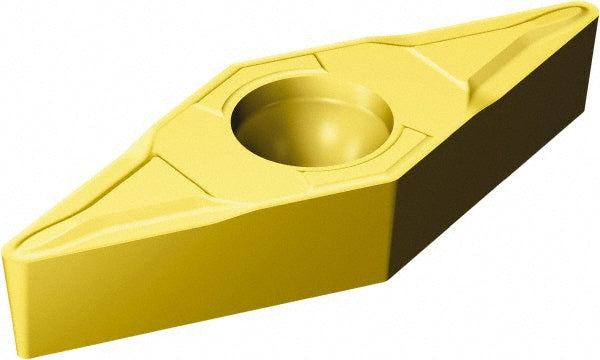

VBMT110304KF3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5755616
MFR# 5755616ISO/ANSI# VBMT110304KF3005Series CoroTurn 107
$22.19List $28.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755616 is a VBMT110304KF3005 carbide indexable insert, grade 3005, TiCN coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110304KF3005
Length range0.4000 - 0.5000
Manufacturers catalog number5755616
Manufacturer grade3005
Maximum depth of cut0.4201
Relief angle5
Tolerance codeM
